Intelligent Control Platform Makes Life More Convenient
Product Features
| Model | 1800G7 |
| Input Data (DC) | |
| Recommend Solar | 4*400~720 |
| Operating voltage Range | 26~60 |
| Peak Power MPPT voltage range | 30~48 |
| Maximum Input Voltage(V) | 60 |
| Maximum input current (A) | 4*16 |
| Output Data (AC) | |
|
Maximum continuous output power(VA) |
1800 |
|
Maximum continuous output current(A) |
7.8A (230V), 8.2A (220V) |
|
Nominal output voltage/Range (V)① |
220V/230V(198-253V) |
|
Adjustable Output Voltage Range(V) |
195.5V-264.5V |
|
Nominal frequency//Range( (Hz)① |
60/59.3-60.5Hz, 50/48-51Hz |
|
Adjustable Output Frequency Range(Hz) |
45Hz-65Hz |
| Total harmonic distortion | <5% |
| Power factor(adjustable) | 0.99/0.8 leading…0.8 lagging |
| Efficiency | |
|
Peak convert efficiency |
>95% |
|
CEC weighted efficiency |
>93.5% |
|
Nominal MPPT efficiency |
>99.8% |
|
Night power consumption (mW) |
<100 |
| Mechanical Data | |
|
Ambient temperature range (℃) |
~40℃ ~ + 65℃ |
| Ingress protection | IP67 |
| Cooling | Natural Convection |
| Communication | Wi~Fi /802.11b/g/n 2.4GHz |
| Isolation Design | High Frequency Transformers, Galvanically Isolated |
| Compliance | EN50549~10,VDE4105 |
| VDE 0124,VDE 0126/RD1663,RD1699,RD647, UNE217001;UNE217002/EN50549~1; CEI0~21,NB/T32004 , |
|
|

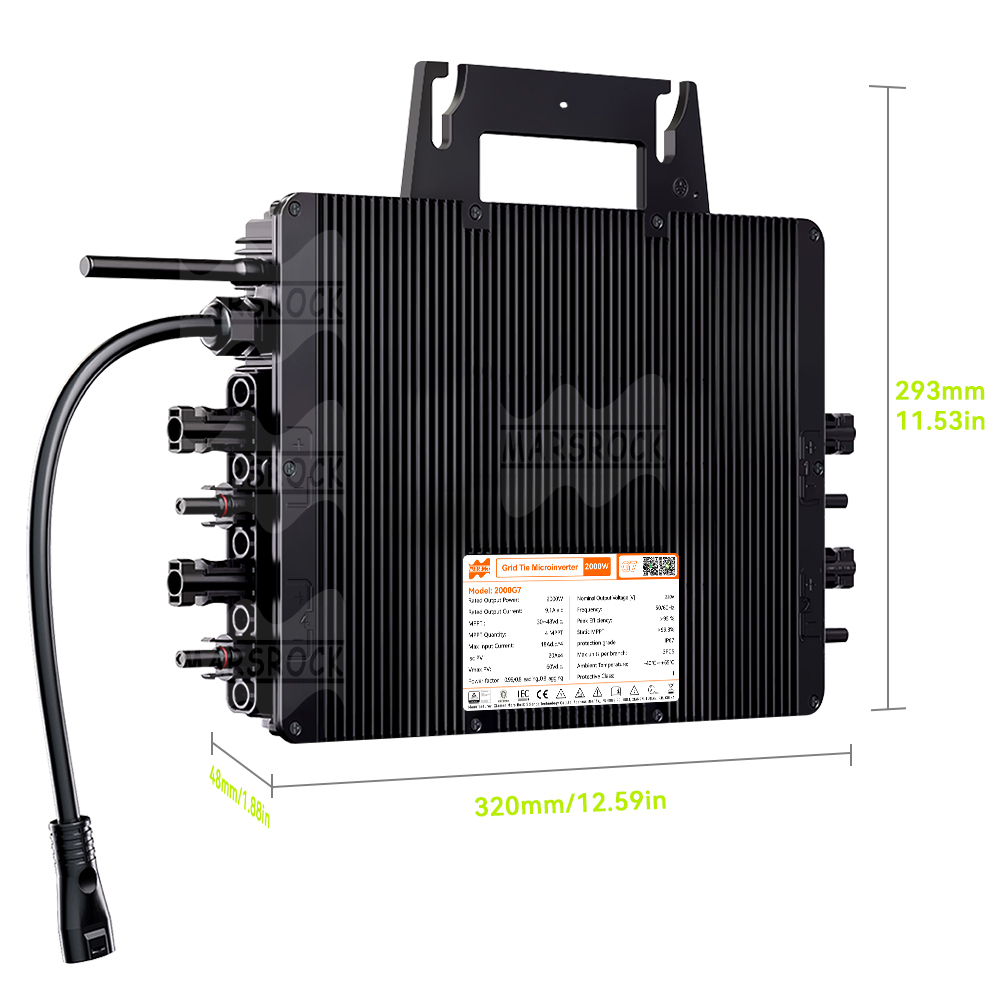

Dimensions (W × H × D [mm]) |
320*293*48 |
|
Weight (kg) |
6.4 |
|
Warranty |
5 Years default, Extend 10/12 Years optional |
